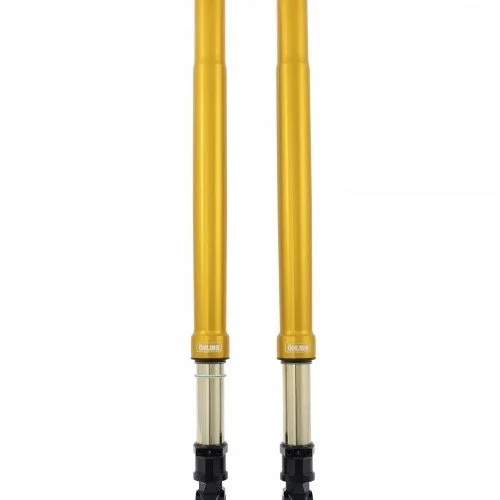

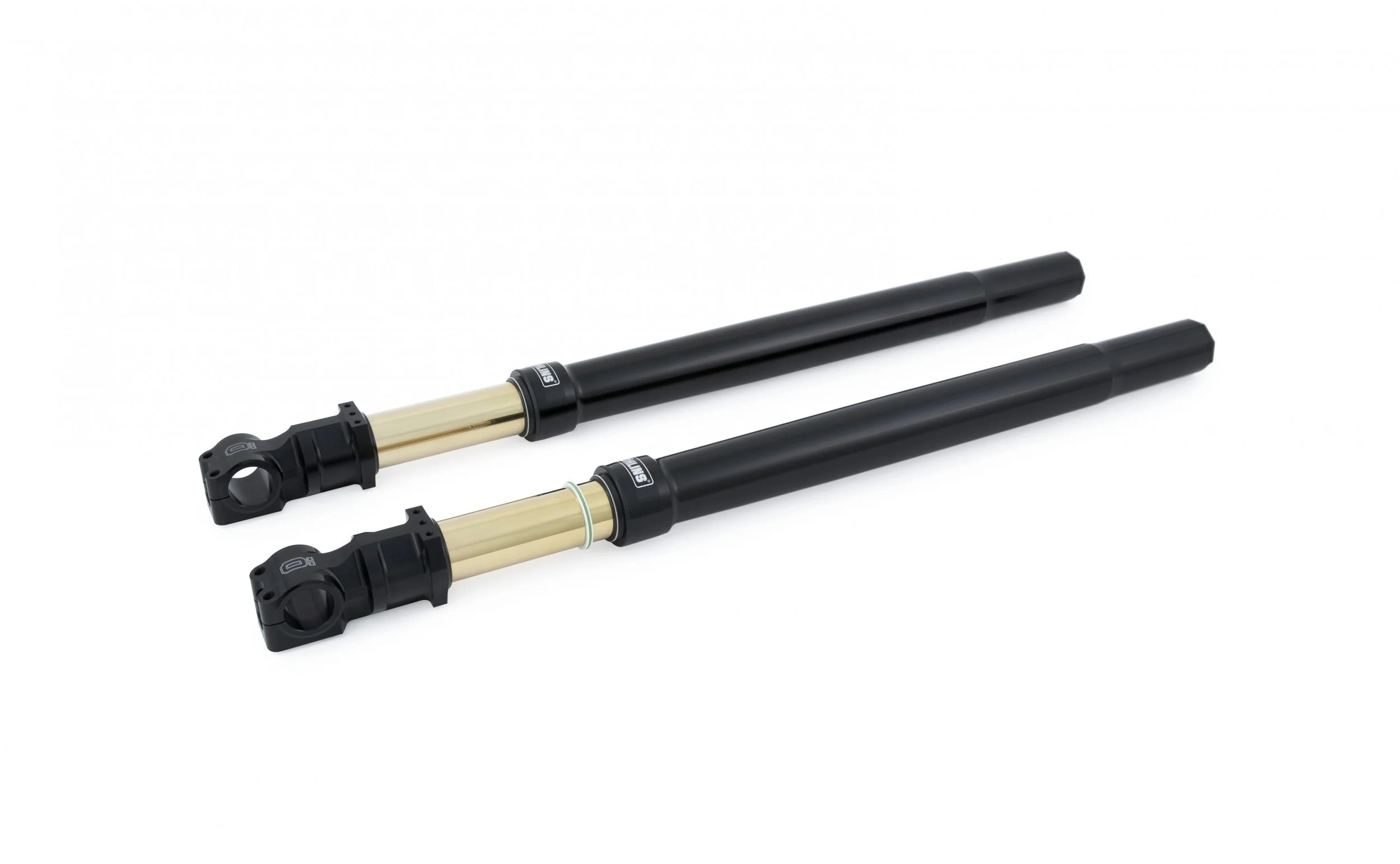

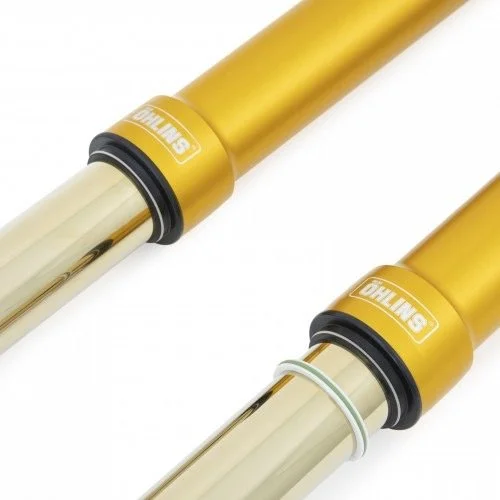

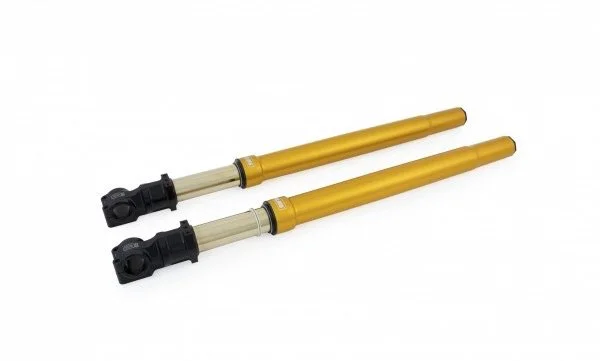

Öhlins FF 523/524 Universal USD R/T Black or Gold Inverted Fork - Specifically for Harley Davidson

Öhlins offers a 43 mm upside down fork for any custom builder that wants to give the bike supreme suspension and at the same time get the familiar Öhlins Racing design. Black or gold? It´s your choice!

The technology in the fully adjustable Universal Upside Down (USD) fork is proven through the years on numerous applications. Café racers, scramblers, custom art or just a good fork to your standard bike?

While this fork works for all applications…it has been UPGRADED from a 8.5N/mm Spring Rate that is available for the FF 521 to the much stiffer 12 N/mm, specifically for Harley Davidson Models!!!

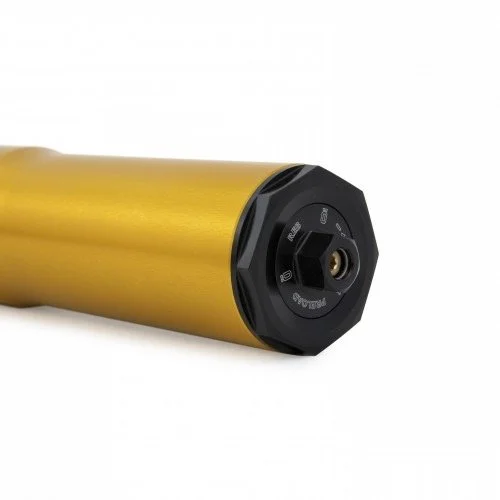

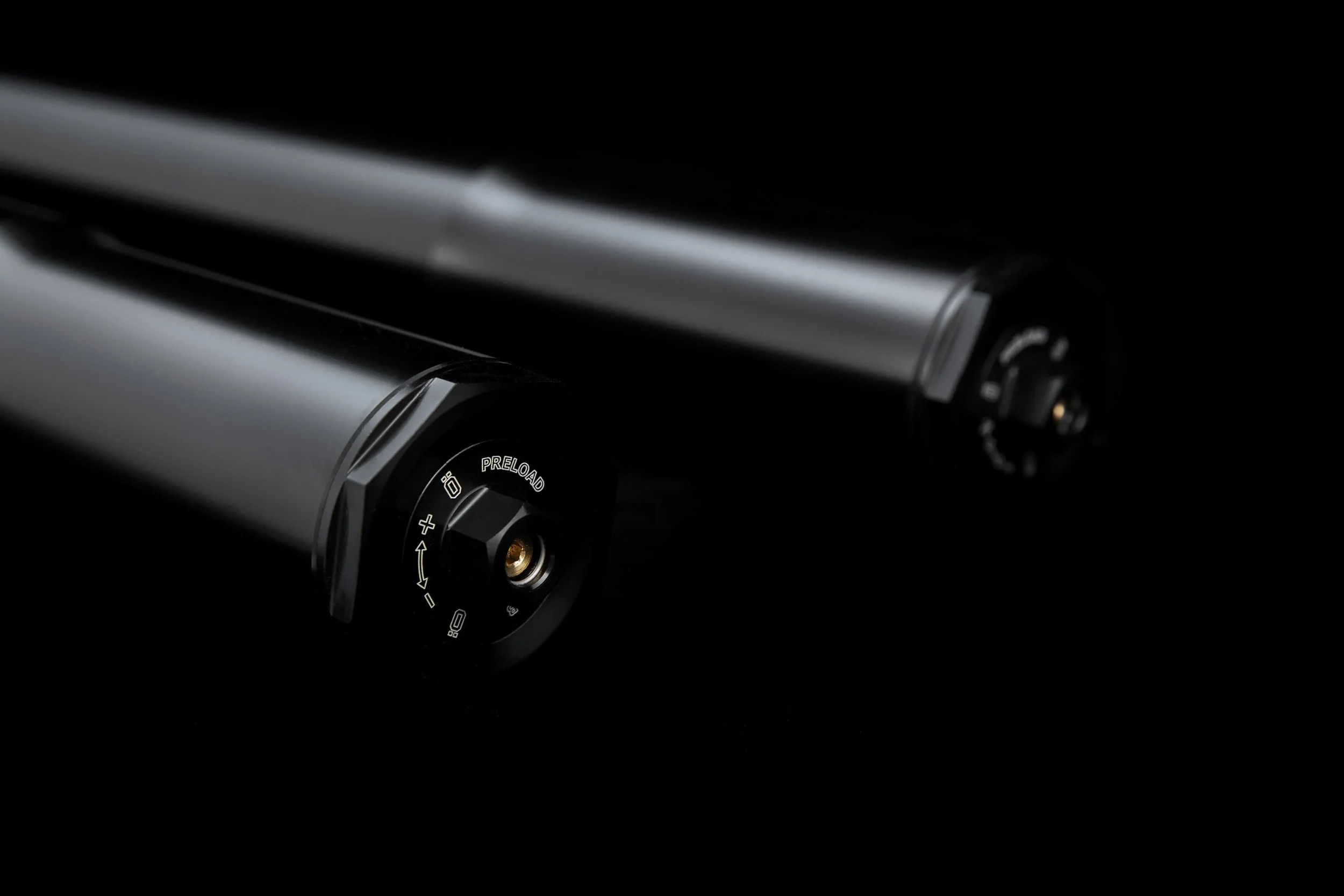

The top cap gives the possibility to adjust spring preload as well as compression adjustment in each leg separately. The external adjuster on the fork bottom clamps is for rebound adjustments.

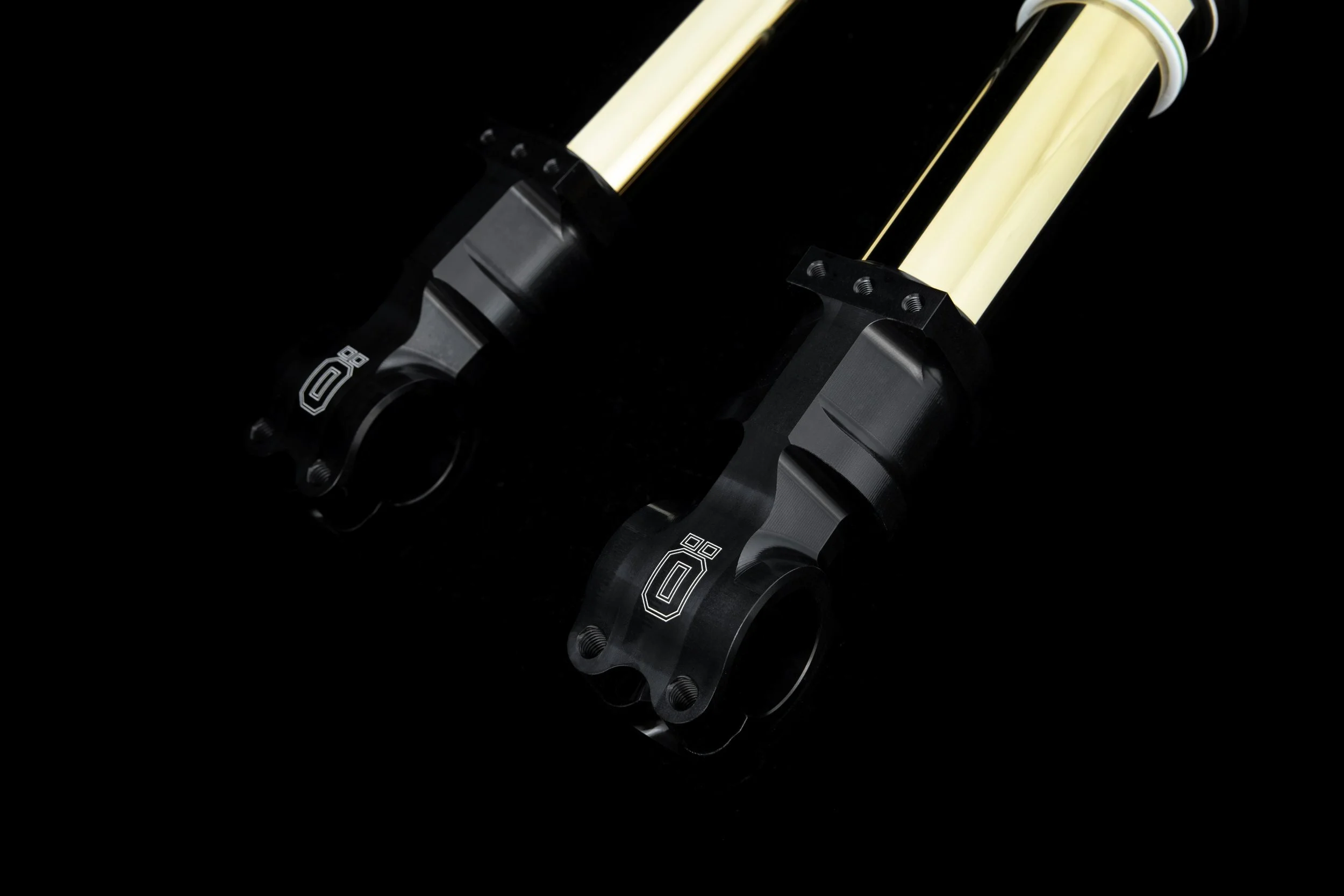

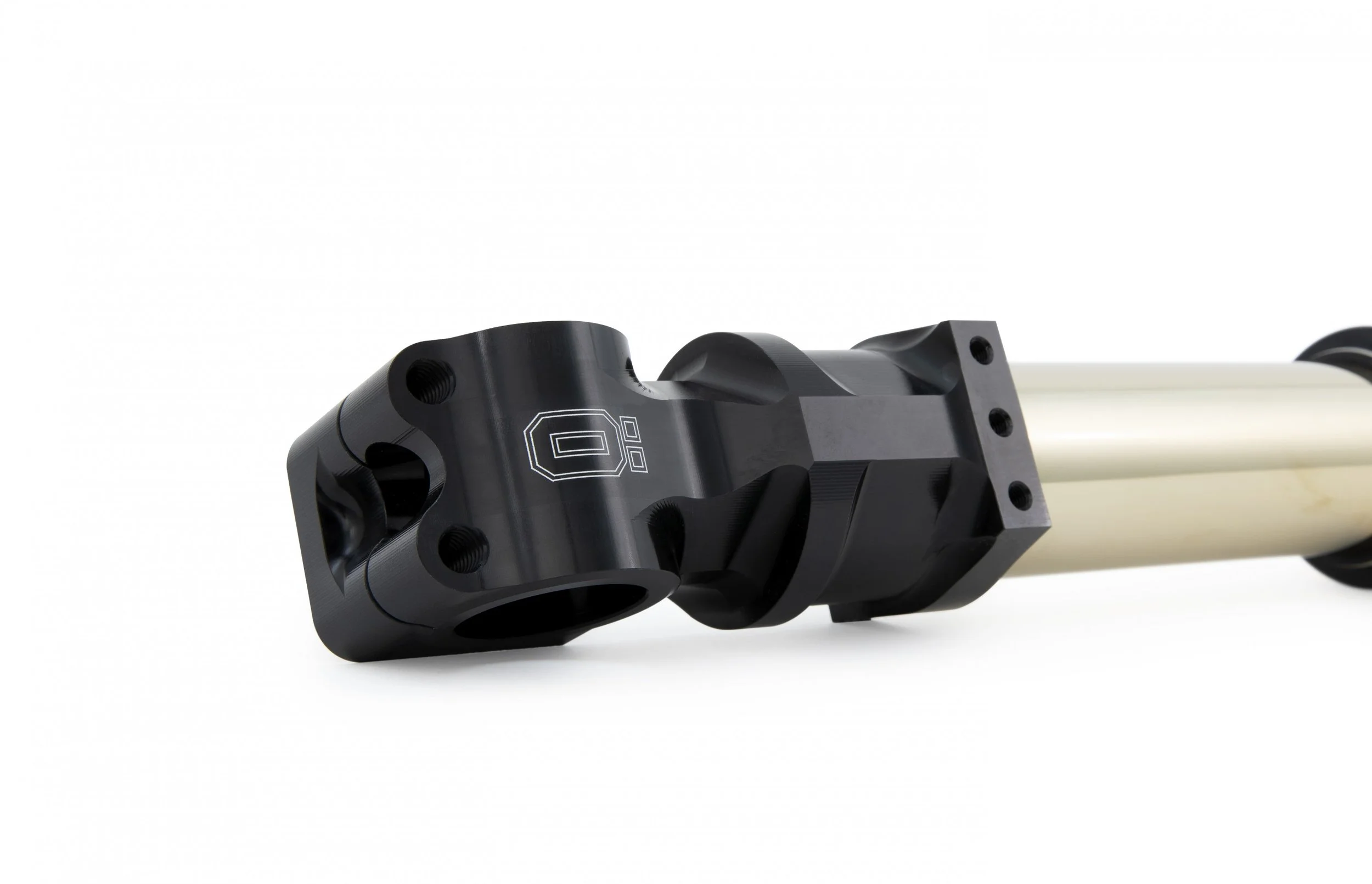

The fork bottoms are clean without brake caliper mountings… This allows you to use any number of Aftermarket Brake Caliper mounts that are made for Ohlins Inverted Forks Legs or to give the fork leg a clean look if you go with a left side brake only.

This also enables the fork to be mounted on various models.

Specs:

12.0 N/mm Spring Rate for Harley Davidson Models

*** While you can custom tune these however you like…3mm of Pre Load is Recommended for FXR and Dyna Models… 12-13mm for Touring Models ***

Features:

Stroke 120 mm

Length 800 mm

Top clamp diam. 50 mm

Lower clamp diam. 54 mm

Wheel axle 32 mm

Fully adjustable

Setting can be changed with help from Öhlins Service Centers
