Dynatek - Twin Fire II Coil

In Single-fire motorcycle coil applications, the extra post allows the system to fire only the specific cylinder that is on its compression stroke, maximizing spark efficiency and performance.

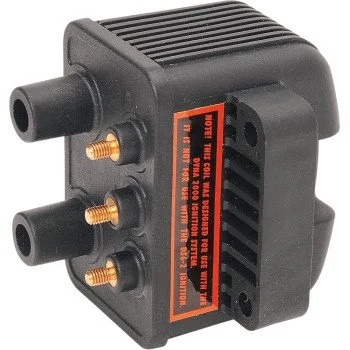

The Twin Fire coil incorporates two individual performance ignition coils into one easy to mount package. This solves the problem of trying to mount two ignition coils on Harleys when installing single fire ignition systems.

The Twin Fire coil is only slightly larger than the stock Harley coil and uses the stock mounting bracket. The Twin Fire coil will fit under the tank on XL AND FLH models as well as in the stock location on the side of the motor for FXR models or rear of the motor for Dyna and Softail models. The DC6-4 is used for all dual spark plug head applications. The Dyna Twin Fire coil can be used with any electronic advance ignition system that incorporates dwell control, but cannot be used with the DS6-2 Dyna S or similar ignitions.

Features:

• High-technology materials now make it possible to put two coils in the same space as the stock coil with greater output

• No exposed laminations to rust and degrade performance

• High voltage and primary terminals machined from brass

• High-impact thermoplastic housing is ultrasonically welded and sealed against moisture

• Compact size fits easily under stock covers

• Peak gap current in excess of 50 mA

• Over 40,000 V per output

• Rated at 3 ohms; accepts 7 to 8 mm wires

• Made in the USA
