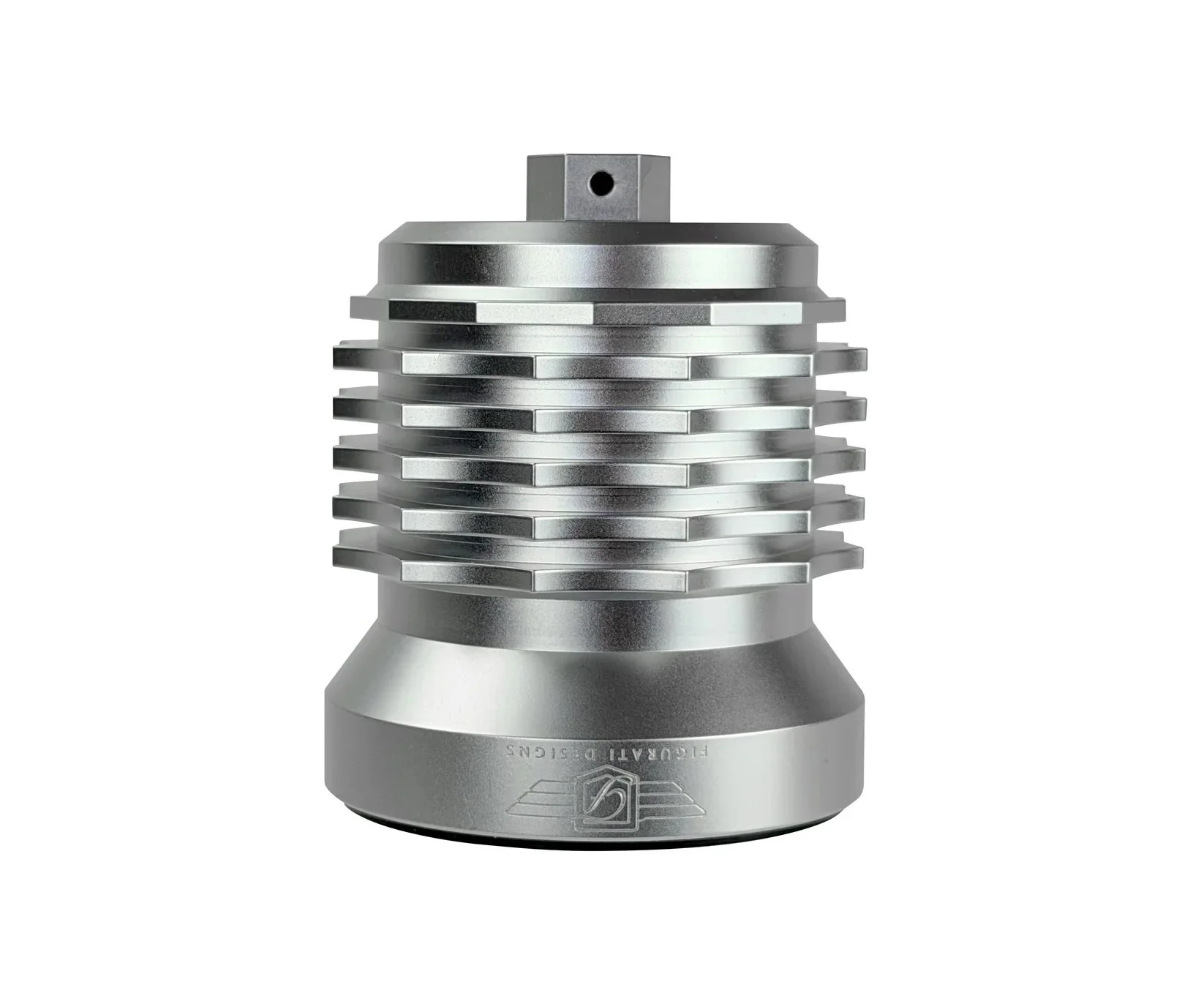

Figurati Performance Magnetic Oil Filter for Harley-Davidson All Models (1984-2026) - Black or Silver

Filter more impurities than the competition with the only oil filter that has a powerful magnet on the inside.

High-grade anodized aluminum housing integrates 4 external pre-filtering magnets, superfine stainless-steel mesh, and a powerful internal neodymium rare-earth magnet—a combination that filters particles down to a staggering 25 microns.

With cleanable, reusable components and a flow rate 10 times greater than traditional paper filters, Figurati Designs® Performance Magnetic Oil Filter is the future of filtering.

FEATURES

• 6063 lightweight, high-strength anodized aluminum

• Powerful internal neodymium magnetic filtration

• 4 external pre-filtering magnets

• Cleanable and reusable

• Environmentally friendly

SPECS

• Filter level: 25 microns

• Filter Material: Stainless-steel and Aluminum

• Magnet Strength:

  • Internal Magnet: 2800 gauss

  • External Magnets: 2700 gauss *4

• Pressure relief valve threshold: 15 PSI

Cleaning instructions

1. Unscrew top nut

2. Remove ball bearing, spring, and 2800 gauss center/bypass magnet

3. Wipe down housing and components with a microfiber cloth

4. Replace components

5. Reinstall filter

FITMENT NOTE:

Performance Magnetic Oil Filter fits Harley-Davidson models equipped with Evo, Twin Cam, and M8 engines.

YES…This will fit your FXR !!!
